Apium PCS with MPPT and STS modules Apium
Commercial storage · PCS + MPPT + STS

100 kW–2.5 MW C&I ESS solution

Model SUN-100/125K-PCS01HP3

A modular commercial and industrial storage system: 100 or 125 kW PCS units with built-in EMS, MPPT solar modules and STS switching, scalable to 2.5 MW.

ModelCommercial storage · 2 models
100 kW–2.5 MW 60–192 kWh
  • 100 / 125 kWPCS unit rating
  • 2.5 MWMax. system power
  • < 10 msOn/off-grid switching
  • 200 kWpPV per MPPT module
  • 98.5%PCS max. efficiency
  • 630–1,000 VBattery voltage
Price on requestEnquire for a quote
  • Supplied and supported by Uni-E, with branches in 4 cities
  • Installed by Apium installers
  • Registered Apium installers get installer pricing. Register
Overview

Commercial storage that scales to 2.5 MW.

The Apium 100 kW–2.5 MW C&I ESS solution is built from modules. The PCS (100 or 125 kW) charges and discharges a 630–1,000 V lithium battery at up to 175 or 200 A, with a built-in EMS for zero export, time-of-use optimisation, peak shaving, demand control and load tracking. MPPT modules add up to 200 kWp of solar each, on 8 trackers.

The STS module switches between grid and off-grid in under 10 ms and connects grid, load and generator paths of 500 kW each. Up to five 100 kW or four 125 kW PCS units run per STS module, and up to five STS modules in parallel, for systems up to 2.5 MW. It pairs with Apium ORION W (GB-W) battery storage.

All figures from the Apium 100 kW–2.5 MW C&I ESS Solution datasheet.

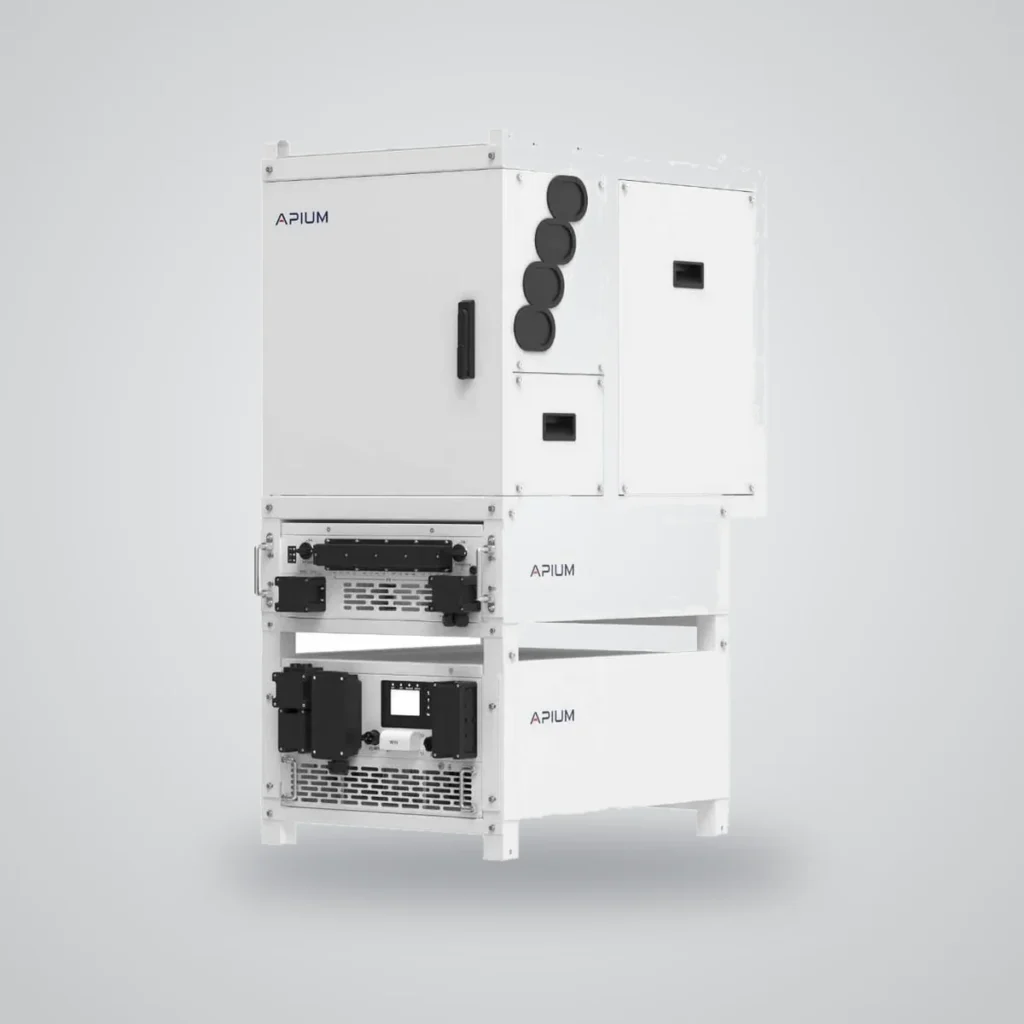

Apium high-voltage commercial energy storage system
PCS, MPPT and STS modules
Key features

Modular power for business and industry.

Integrated EMS

Zero export, overload protection, TOU optimisation, peak shaving, demand control and load tracking.

High PV capacity

Up to 200 kWp per MPPT module, with 8 trackers of up to 40 A each.

UPS-level switching

Seamless on-grid / off-grid switching in under 10 ms via the STS module.

Strong overload capability

Continuous AC overloading and 2× peak power in off-grid mode.

Flexible expansion

100/125 kW PCS units scale the system up to 2.5 MW.

Three power paths

Grid, load and generator ports of 500 kW each on the STS module.

Technical specifications

SUN-100/125K-PCS01HP3

Figures supplied by the manufacturer.

System

System rated power
Up to 2.5 MW
PCS units per STS module
5 × 100 kW or 4 × 125 kW
STS modules in parallel
Up to 5
On-grid / off-grid switching
< 10 ms (via STS module)
Off-grid peak power
Up to 200% of rated power
Integrated EMS
Zero export, overload protection, TOU optimisation, peak shaving, demand control, load tracking

PCS module (SUN-100K / SUN-125K-PCS01HP3)

Rated active power
100 kW / 125 kW
Max. apparent power
110 kVA / 125 kVA
Rated current (input / output)
151.6 / 145 A · 189.4 / 181.2 A
Battery type
Lithium-ion
Battery voltage range
630–1,000 V
Max. charge / discharge current
175 A / 200 A
Max. DC input current
200 A
Rated voltage / range
220/380 V, 230/400 V, 0.85–1.1 Un
Grid frequency / range
50 Hz (45–55), 60 Hz (55–65)
Grid connection
3L + N + PE
Power factor range
−1 to 1
Current harmonic distortion (THDi)
< 3% of nominal power
Max. efficiency
98.5%
Euro efficiency
97.8%
Integrated protection
AC output overcurrent, AC output overvoltage, AC output short circuit, thermal, anti-islanding, insulation impedance detection, residual current detection
Surge protection
Type II (DC), Type II (AC)
Display
LCD
Communication
Wi-Fi, RS485, CAN, meter
Operating temperature
−40 to +60 °C, derating above 45 °C
Ambient humidity
0–95%
Altitude
4,000 m
Noise
< 75 dB
Ingress protection
IP65 (PCS module)
Dimensions (W × H × D)
543 × 310 × 775 mm (excluding connectors and brackets)
Weight
81.86 kg
Cooling
Intelligent air cooling

MPPT module (SUN-MPPT-L01-EU-AM8)

MPP trackers
8
Max. PV access power
200 kW
Max. PV input power
160 kW
Max. PV input voltage
800 V
Start-up voltage
200 V
MPPT voltage range
180–750 V
Full-load MPPT voltage range
450–750 V
Rated PV input voltage
600 V
Max. operating PV input current
8 × 40 A
Max. input short-circuit current
8 × 60 A
DC output voltage range
630–1,000 V
Max. DC output current
200 A
MPPT efficiency
> 99.9%
Ingress protection
IP65
Dimensions (W × H × D)
543 × 198 × 700 mm
Weight
41.75 kg

STS module (SUN-STS500L)

Rated power (grid / load / generator)
500 kW each
Rated current
758 / 725 A
Rated voltage
220/380 V, 230/400 V (three phase)
Grid connection
3L / N / PE
Off-grid switching time
< 10 ms
Ingress protection
IP20
Dimensions (W × H × D)
543 × 575 × 671 mm
Weight
108 kg
Cooling
Natural cooling

Standards

Grid regulation
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety / EMC
IEC/EN 62477-1 (PCS), IEC/EN 62109-1 (MPPT), IEC/EN 61439-1/-2 (STS)
